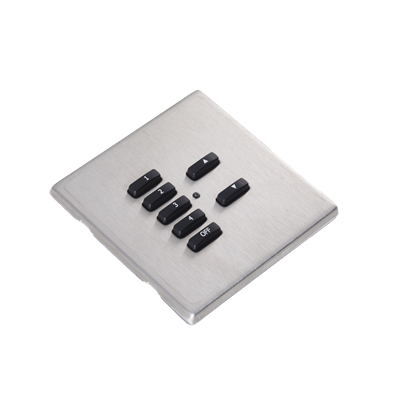

The RCM-070 wireless push button control module provides four scenes, off and master raise & lower and offers full scene programming.

Wireless keypads are lithium battery powered with battery life calculated as being 3 years, based on pressing a button 30 times a day. Externally powered versions of the panels are available.

Based on the 50 x 50mm Euro module, RCM units are modules only and always require a front plate kit.  Panels can either be surface mounted using the pattress, which gives a depth of 14mm, or flush mounted into a standard single gang UK back-box.  Rako's single gang RVF (screw-fixing) front plate kits have surface mount options.  Double gang and RLF (screwless) options are for flush mounting only.

Available plate finishes

Standard

  • Satin Stainless Steel

  • Black Nickel

  • Polished Brass

  • Polished Stainless Steel

  • Chocolate Bronze

  • White
    (Egg Shell Finish)

Custom

  • Antique Brass

  • Bronze Satin Stainless

  • Satin Brass

  • Bronze Antique

  • Matt Black

  • Prism

Rako Plate Designer

Use our plate designer to view plate finishes and customise button legends and layouts
