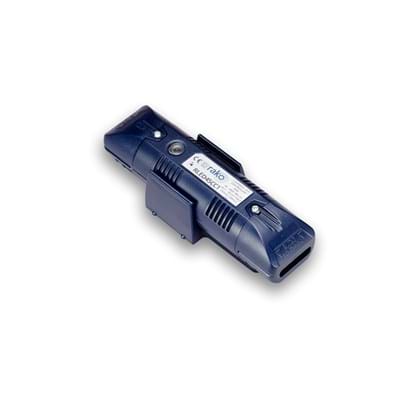

A 45W constant current LED dimmer with in-built RF receiver and Rako processor for constant current LED fittings. Selectable outputs of 350, 500, 600, 700 and 1000mA with a forward voltage range of 3-45V DC. The RLED45CC1 is fed from a suitable DC power supply to provide an adequate forward voltage, Rako recommends the RAPSU48.
The module is connected in-line before the first fitting and can control up to 13 LEDs in series (note: some fittings may use multiple LEDs, if in doubt refer to Rako's technical department) with a maximum wattage of 45W.
Controlled from any Rako Rakom device, e.g. RCM wall plates or Bridge interface units.
This product may require some of the following additional items. Please contact the Rako support team for advice and guidance.
